Building wires

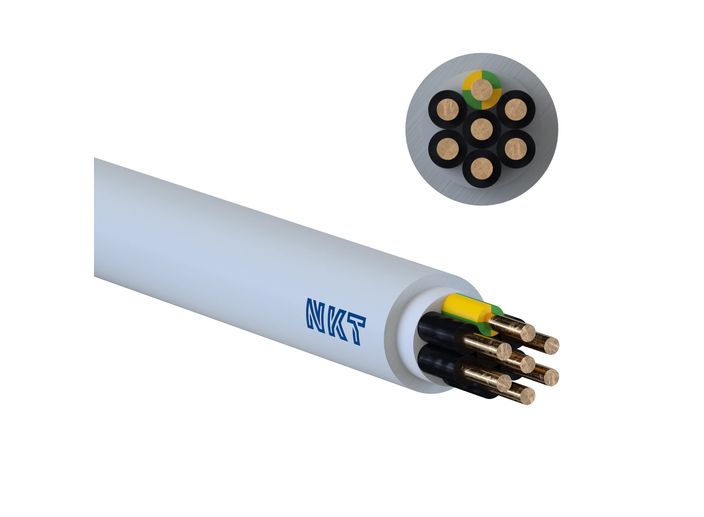

NYM 300/500 V

For installation on or above surface, embedded and concealed in dry, damp and wet rooms as well as in masonry and concrete, not to be embedded directly in vibrated or stamped conrete. Also suitable for outdoor installation, if protected from direct sun radiation. Not to be installed directly in soil.
For installation on or above surface, embedded and concealed in dry, damp and wet rooms as well as in masonry and concrete, not to be embedded directly in vibrated or stamped conrete. Also suitable for outdoor installation, if protected from direct sun radiation. Not to be installed directly in soil.

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Material conductor: Copper
Material outer sheath: PVC
Core type: Multi core
Rated voltage (U0/U): 300/500 V
Test Voltage: 2 kV
Max. operating Temperature: +70°C
Max. short circuit Temperature: +160°C
Min. operating Temperature: -40°C
Min. storage Temperature: -40°C
Min. Temperature when laying: +5°C
CPR fire class: Eca
Standard / Norm: DIN VDE 0250-204
Material conductor: Copper
Material outer sheath: PVC
Core type: Multi core
Rated voltage (U0/U): 300/500 V
Test Voltage: 2 kV
Max. operating Temperature: +70°C
Max. short circuit Temperature: +160°C
Min. operating Temperature: -40°C
Min. storage Temperature: -40°C
Min. Temperature when laying: +5°C
CPR fire class: Eca
Standard / Norm: DIN VDE 0250-204

Cable structure in video animation
