Telecom energy cables

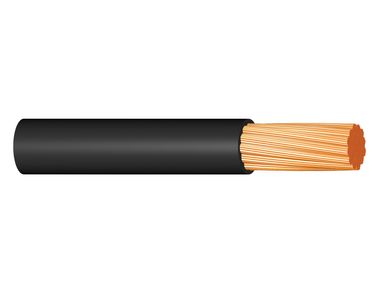

S1Z1
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Single jacket insulation. Halogen free, flame retardant connection cable for internal wiring and grounding of equipment. CPR class Dca and UL recognized. Indoor and outdoor use.
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Single jacket insulation. Halogen free, flame retardant connection cable for internal wiring and grounding of equipment. CPR class Dca and UL recognized. Indoor and outdoor use.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Material conductor: Copper
Conductor size: 10AWG (6); 8AWG (10); 6AWG (16); 4AWG (25); 2AWG (35); 1AWG (50)
Material outer sheath: PE
Number of cores: 1
Core type: Single-Core
Bending radius: 3 x OD
Sunlight resistant: Yes
Rated voltage (U0/U): 600/600 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
CPR fire class: Cca
Application: Grounding cable, Battery cable
Standard / Norm: UL recognized
Halogen free: Yes
Insulation material: LSZH
Jacket Material: LSZH
Downloads
- Data Sheets
- DOPs
